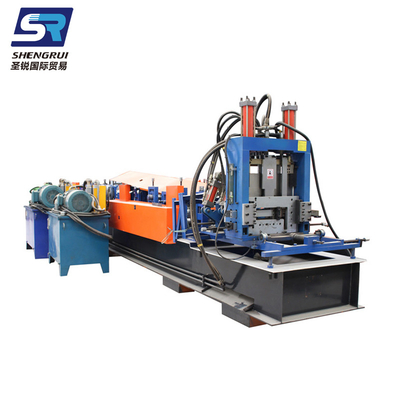

C Purlin Roll Forming Machine | ||||||||
Un-coiler | Max Capacity : | 5T | ||||||
Inner diameter of coil : | ≤508mm | |||||||
Type : | Manual or Automatic | |||||||
Main Forming System | Thickness of sheet : | 3mm | ||||||
Material : | GI sheet coil or Colored sheet coil | |||||||
Roller material : | Cr12 | |||||||
Surface of Roller : | Heat treatment HRC58-60 | |||||||
Diameter of main shaft : | 75mm #45 steel, heat treat modulation | |||||||
Forming station : | 13 stations. | |||||||
Transmission : | by chain and gear | |||||||
Measuring accuracy : | +/- 0.5 mm/M | |||||||
Output : | 8-10 Tons per shift (8 hrs.). | |||||||
Speed: | 10-20m/min | |||||||
Hydraulic Cutting Device | Cutting way : | Tracking (Flying) | ||||||
Oil pump station : | 1set | |||||||
Motor power of Oil pump station : | 7.5kw with cooling system. | |||||||
Cutting mould : | 1 set | |||||||
Material of blade : | CR12 with heat treatment HRC60-62 | |||||||
