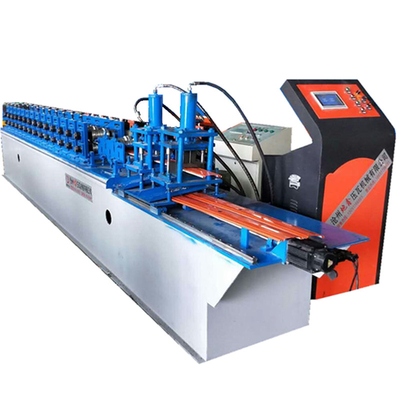

Selling custom garage roller shutter doors panel color sheet cold rolled forming making machines
Adopt double-sided dip galvanized steel plate, and double-sided spray longevity coating (pure polyester), strong corrosion resistance.
The outer end of the steel plate wraps so that the inside and the outside are attached together, better sealing with the two walls.
The sandwich layer is made of highly solid polyurethane foam, which can increase the insulation effect.
The bottom of the door is equipped with "U" type sealing strip, sealed tightly, to enhance the effect of dust and wind
| Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
| Thickness of coil sheet | 0.3-0.8mm |
| Feeding Coil width | 156mm |
| Effective width | 115mm |
| Under frame | 600H-beam |
| Diameter of Soild shaft |
50mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway |
| Roller |
High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,hard chrome coated 0.05-0.07mm |
| Thickness of middle plate | Memorical archway |
| Forming stations | 12 |
| Drive type | By chain(1.0 inch) link bearing model 6210 |
| Power of main motor | 5.5kw with Cycloidal reducer, Lichao, Shanghai |
| Power of pump station | 4kw, Lichao, Shanghai |
| Forming speed | About 15-20m/min |
| Hydraulic cutting | Controlled by PLC |
| PLC | DELTA, TAIWAN / Mitsubishi, Japan |
| Material of cutting blade | Cr12Mov, quenching 58-62°C |
| Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrialstandard ±3mm). |
We use the best quality raw materials, so you can trust our quality.Machines are not only economical in price, but also guaranteed in quality.
Maybe you are interested in other models
(We can customize these according to your requirements)
We have the best raw materials and machine parts
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,or Shanghai ,how to visit your company?
A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
