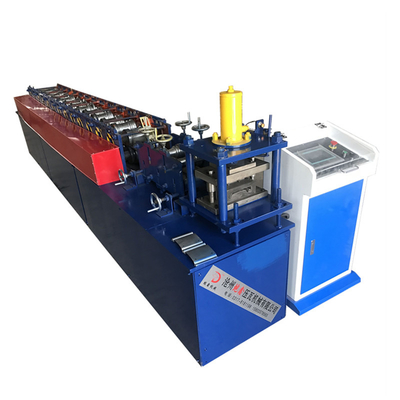

Galvanized Steel Metal 0.3 - 1.0mm Shutter Door Roll Forming Machine
The products produced by Automatic Roller Shutter Door Sheet Roll Forming Machine are bright in colored, against fading, resistant to rust, and be widely used in shops, working departments, warehouses, and fire partition. Its strength is three times higher than aluminum alloy door.Roll Shutter Door Roll Forming Machines.
Technical Parameter
| No. | Item | parameter |
| 1 | Machine size | 4800*800*1600mm |
| 2 | Machine weight | 2000kg |
| 3 | Machine power | 5.5kw |
| 4 | Hydraulic engine | 4kw |
| 5 | Roll speed | 14M/Min |
| 6 | Roll stations | 13 |
| 7 | Roller material | 45#Steel |
| 8 | Effective width | 75mm |
| 9 | Feeding width | 125mm |
| 10 | Voltage | 380V 50Hz 3PH/Customized |
| 11 | Material thickness | 0.6-0.8mm/Customized |
| 12 | Control System | Schneider/Delta/Customized |
Roll Forming System:
Roll forming system consist of machine frame, transmission system, electrical motor and roll forming system.
A. Machine frame adopts welding structure with shot blasting and painting treatment
B. All rollers material adopt high quality No. 45 steel, with hard chrome coated on surface, all treatment by full CNC machines, to make sure the rollers with good rigidity and precision, and form perfect roofing sheet as per design.
C. All rolling shafts are made by high quality No. 45 steel with quench and temper treatment, so the shafts with good rigidity which could use for long tern without deformation.
D. Rolling shafting supporting structure type is steel wall and welded with the basement together to have rigidity.
E. Cycloidal pin gear speed reducer motor driven, the back/forward roller driven by chain, part of upper/lower rollers driven by gear
F. Adjust the screw bar manually to adjust the distance between upper/lower rollers for difference thickness of sheet.
(Attention: all rolling system has adjusted in our company as a perfect situation, we don't suggest to adjust the rollers at random, if necessary, should adjust by a experienced technician or after train by our engineer. Otherwise will cause the machine can not form a good profile.
30% T/T as the deposit when contract signed, 70% balanced before shipping.
1.Tighten to container with steel wire rope and welded angel iron.
2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic)
3 .Roll forming machine PLC control system and moter pump are packed with water-proof plastic coveragePortTianjinLead Time :30 days after your pre-deposit
PRODUCTS WARRANTY
12 months, and we will provide the technical support for the whole life of the equipment.
USAGE AND FEATURE
The feature looks beautiful, elegant and noble. those are widely used in building the factory, hotel, and mobile house and so on.
This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
REMARKS
1 .The machine can according to your requirement to set the color
2. Within in one year if any parts go broken we will send new ones to replace for free
3. If you want to learn more about the product please login our website or contract to us
SERVICE
One years for free, after the warranty period. we will help you repair the machine, you only responsible for the labour and parts, when the machine have some problem
EXPORT MARKET
Russia, India, English, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions.
TERMS
1. Delivery: in stock
2. Package: Export Standard package for container
3. Validity: good for 30days
