Shutter Door Good Quality Galvanized Steel Rolling Shutter Strip Making Machine

Shutter Door Good Quality Galvanized Steel Rolling Shutter Strip Making Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
基本情報
お支払配送条件
製品の説明
Product Description

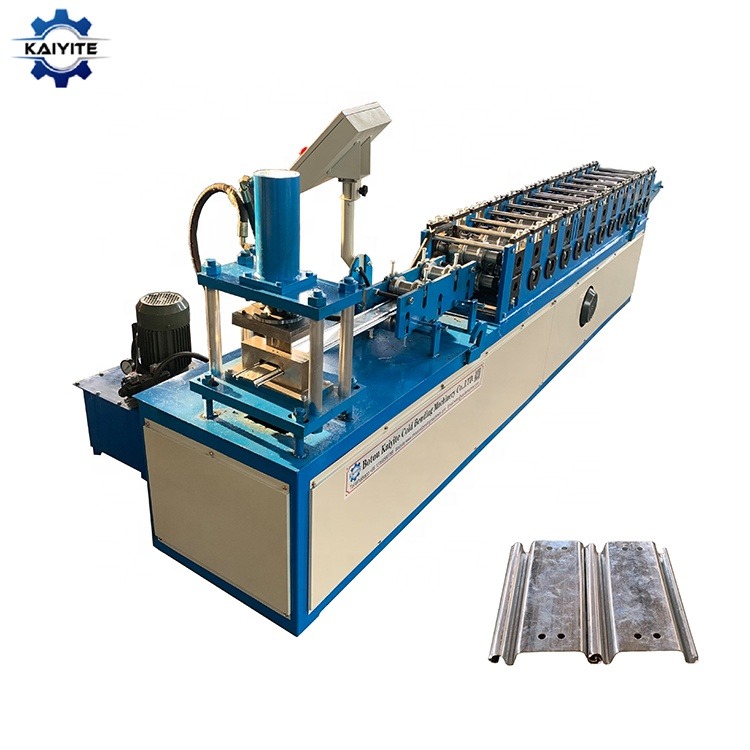

Rolling Shutter Strip Making Machine
This roll-up sheet door fit for mini warehouse and storage facilities. The cutting width is adjustable. The forming shape with integral groove, which can hemmed together to form a continuous sheet. We also have machines for garage door frame, guide rail and bottom plate, which can composist a full shutter door.
Product Show
The Chart of the Process Flow
Manual Decoiler -- Feeding and Guiding Table -- Main Roll Forming Machine -- Plc Control System -- Hydraulic Cutting Device --Product Receiving Table
Specification of Components





Manual Decoiler
Frame structure : H-beam and Steel plate seamless welding;Loading capacity : 1.5T;
Inner diameter : 450-530mm;
Width coil width max:530mm.






Roller of Rolling Shutter Machine
Roller Station：12 roller stations
Material of the roller : 45# Steel






PLC Control System
Brand of the Plc:Delta
Voltage: 380V 50Hz 3Phases or Customerization






Hydraulic Cutting Device
Cutting Type: Hydraulic Cutting
Blade of the cutting:Cr12 Mov
Company information
FAQ
Q1: Are you a manufacturer?
A1:Yes, we are professional manufacturer of the roll forming machine
Q2. What are the main key points for selecting right machines?
A2: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.Good quality is for long-term business cooperation.
Q3. Can you provide OEM service for roll forming machine?
A3: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q4. How about the after-sale service?
A4: We provide 5 years free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q5:I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
A5: If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 80 -100 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.
Q6: I receive a lot of quotations, they are big range, How could i choose?
A6: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for contacting with me.
Q7: I have not whatsapp and skype, how could I contact with you?
A7: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.
Q8. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A8: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West When youarrive our station, we will arrange to pick up you there!
