ホーム /製品/シャッター底の機械/Building Material Shops Shutter Door Roll Forming Machine Roller Shutter Forming Machine Rolling Shutter Door Forming Machine

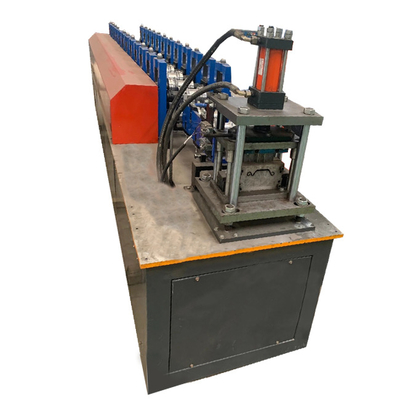

Building Material Shops Shutter Door Roll Forming Machine Roller Shutter Forming Machine Rolling Shutter Door Forming Machine

1 Set
MOQ
$9,800.00(1 - 7 Sets) $8,500.00(>=8 Sets)
価格
Building Material Shops Shutter Door Roll Forming Machine Roller Shutter Forming Machine Rolling Shutter Door Forming Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction works
Showroom Location: None
Condition: New
Type: Tile Forming Machine
Tile Type: Steel
Use: PU Shutter Door Cold Roll Forming Machine
Production Capacity: 6-10m/min
Voltage: 380V 50Hz 3phases
Dimension(L*W*H): 22000*1000*1200mm
Weight: 6.0 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate
Rolling thinckness: 0.3-0.8mm
Feeding width: 1220mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 2 years
Core Components: Motor, Pump, PLC
After-sales Service Provided: Engineers available to service machinery overseas
Suitable material: galvanized steel/color steel coil
Thickness of the plate: 0.3-0.6mm
Roller material: 45# steel
Diameter of active shafts: 40mm
Control system: PLC control system
Main motor power: 5.5 kw
Cutting power: 2.2 kw
Cutting material: Cr12
Frame: 300H steel
基本情報
お支払配送条件
Packaging Details: door shutter machine shutter door roll forming machine
Supply Ability: 20 Set/Sets per Month door shutter machine shutter door roll forming machine
製品の説明
No.
Name
Unit
Qty
1
Manual decoiler
set
1
2
Main forming machine
set
1
3
PLC control system
Set
1
4
Hydraulic pump station
set
1
5
post cut
set
1
6
electric motor
set
1
7
output table
set
1
Our professional engineer will choose suit and high quality parameters for each machine ,which can let the machine run well and have longer life time .We try our best to deal with every details .
We have professional team to design kinds of roll forming machines according to our customers requirement.We can send our technicians to customer's factory for installation, and teach customer's workers how to use the machines. If there is any problems happened to the machine, we will provide solution at once.Hope we could establish win-win business relations in the soon future!
We treat all customers as friend ,before purchasing ,we guide our customer to choose suit machine .after purchase,we supply effective after-sale service .We still try our best to let all customers satisfied not only our machine quality but also our service .
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the TWO-YEARS period, we could supply you the replacement parts for free .
