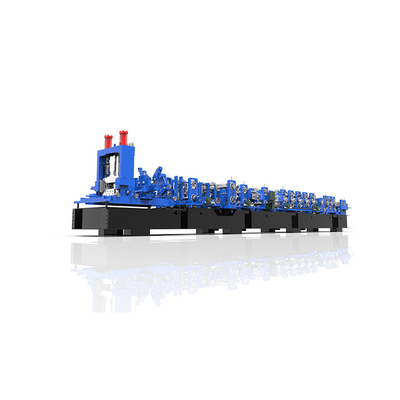

SX10 is the first high-speed stepless roller forming equipment in history that does not need to change the knife after forming and cuts quickly. The stepless conversion system is independently researched and developed by our company. This system is widely used in cold metal roll forming machines such as C&Z Purlin Roll Forming Machine and C Purlin Roll Forming Machine. The stepless transformation can continuously obtain the transformation system of any specification within the transformation range. The stepless technology is mainly manifested in stepless changeover and stepless shearing. The stepless conversion system can be adjusted in millimeters within the specifications. It can produce not only standard sizes, but also non-standard sizes. Later, more other models came into being according to the different needs of customers.
Flow chart: De-coiler - Feeding and Leveling device ---Roll Forming System- Post-punching system– Post Cutting - Hydraulic station - PLC - Cutting Product Support
|
Machine Specifications |
|
|
Weight |
About 9500 kgs |
|
Size |
About 11.5m x1.65m x 1.7m
(length x width x height) |
|
Color |
Main color: blue |
|
|
Warning color: yellow |
|
Suitable Raw Material |
|
|
Material |
cold rolled coil , hot rolled coil, galvanized coil |
|
Thickness |
1.0-3.0mm |
|
Coil width |
According to products size |
|
Yield strength |
Q195,Q235 |
|
Main Technical Parameters |
|
|
Quantity of forming rollers stations |
18 Stations |
|
Diameter of rollers |
ø260MM |
|
Diameter of shafts |
ø88/ø70mm |
|
Roll Forming Speed |
0-25m/min |
|
Production Speed |
12-18m/min(depends on quantity of punching) |
|
Forming rollers material |
CR12 mould steel, with quenched treatment HRC58-60 |
|
Cutter material |
CR12 mould steel, with quenched treatment |
|
Controlling system |
PLC and Converter |
|
Electric power requirement |
Main motor power: 18.5KW |
|
|
Hydraulic unit motor power: 7.5KW |
|
Electric voltage |
According to customers requirement |
1. What is the warranty of machine?
The warranty period of each machine is within one year after delivery; during the warranty period, damaged parts are provided free of charge.
2. Do you have after sales technical support?
Sure, we are glad to give advice and we also have skilled technician across the world. We need your machines running in order to keep your business running.
3. How does your factory do regarding quality control?
Our people always attach great importance to quality control from the very beginning to the end of the production. Every machine will be fully assembled and carefully tested before it`s packed for shipment.
4. Do you sell only standard machines?
No, most of our machines are built according to customers specifications, using top brand name components.
5. Will you deliver the right goods as ordered? How can I trust you?
First of all, our company has a strict shipping process. During the loading process, videos and pictures will be taken, and the packing details will be provided after the loading is completed.
We are an honest enterprise, and honesty and reputation are the source of our continuous struggle.
